digital uv led flatbed printer for sale

digital uv led flatbed printer for sale


Certification: CE Certification
Usage: Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Glass,wood,card,acrylic
Plate Type: Flatbed Printer
Dimensions(L*W*H): 113* 162 *80cm
Weight: 128KG
Automatic Grade: Automatic
Voltage: 110V/220V
Warranty: 2 Years
Print Dimension: 40*60CM
Ink Type: UV inkjet LED curing ink
Product name: UV4060 printer
Print size: 600*400mm
Ink type: UV LED Ink
Printhead: Gh2220 Printheads
Type: Digital Printer
Application: digital uv led flatbed printer phonecase printing machine
UV Curing System: LED UV lamp (Water Cooling)
Printing type: UV inkjet printing
Print speed: A4 Photo*35S

digital uv led flatbed printer for sale

Samples Image

Advertising industry: ABS, Polyurethane, PET, Acrylic, MDF, PVC, etc. for signs, banner, backlight, tags, etc.
Leather industry: Authentic leather, fake leather, PU, etc. for shoes, bags, cases, etc.
Background wall: Glass, tiles, aluminum, wood, paper, etc.
Furniture industry: Wood, glass,Table,Chair,Bench,Cupboard, sofa, doors, etc.
Electronic accessories: Mobile phone cases, industrial products cases, etc.
Gifts printing: Plastics, USB memory card, Stone, Pens, name card case, glass arms, wrist watch belt, wrist bands, etc. nuocai uv printer,focus uv printer,gateway uv printer
Decoration: Exhibition stand decoration, home decoration, wallpaper, hotel decoration, etc.
Industrial printing: Membrane switch, touch panel, home appliance printing, etc.

Product Description

Print ResolutionSpeed model720*720dpi>=8m2/per hour
Standard model720*1440dpi>=6m2/per hour
High quality model2880*2880dpi>=4m2/per hour
Main performance parametersWith Japan Ricoh Gh2220
UV Curing System with LED UV lamp (Water Cooling)
Smart Bi-directional Printing Mode Drop-on-demand Piezo Electric Inkjet

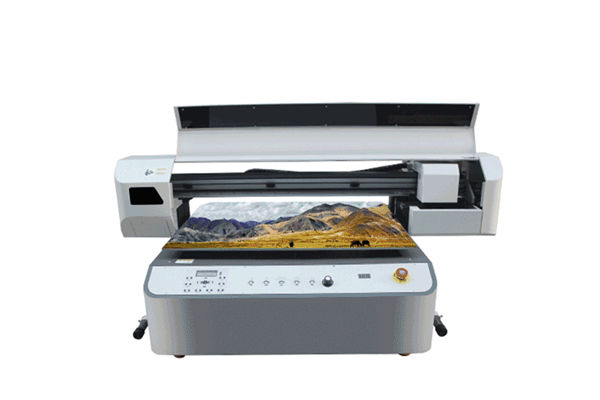

NameDigital UV Flatbed Printer 4060
Machine TypeAutomatic Flatbed UV digital printer

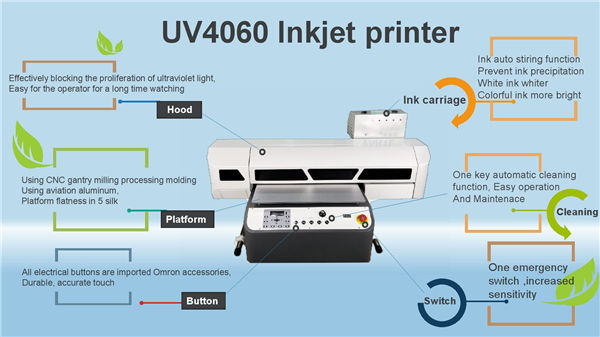

Features· The UV light source can be adjusted
· Auto height measurement
. Power clean
· It can print on any material directly
· Ideal for industrial bulk production with high printing speed
· Finished products is Water proof, UV proof, and Scratch proof
· Finished product is suitable for outdoor use
· Max printing Size: 60*40cm
· With Carry handle
· The printing machine can print white color
Materials to Print· Metal, Plastic, glass, wood, Ceramics,PVC,Steel board,Paper,
· Acrylic, Leather, etc
UV Curing SystemLED UV lamp (Water Cooling)
Printing MethodDrop-on-demand Piezo Electric Inkjet
Printing DirectionSmart Bi-directional Printing Mode
Printing SpeedAbout 120seconds for 720*720dpi, 400mm*600mm size
Max. Print Gap14cm
Power Requirement50/60HZ 220V(±10%)<5A
Print QualityTrue Photographic Quality
Environment20 ~ 28 ℃ HR40-60%
Printer Head2/3/4 pcs Printer Heads(optional)
RIP SoftwareSAi PhotoPrint DX or DX Plus
Operation SystemWindows Win7/Win8/Win10
InterfaceUSB2.0/3.0 Port
LanguagesEnglish,Other language available
Ink TypeUV LED curing ink
Ink SystemCISS Built Inside With Ink Bottle
Ink Supply250ml/Bottle
Height AdjustmentAutomatic with Sensor.
Driving Power110 V/ 220 V.
Power Consumption750W
Media Feeding SystemManual
Ink Consumption15-30ml/SQM.
Working Environment20-28 degrees.
PackingWooden Case
Machine Net Weight148Kg

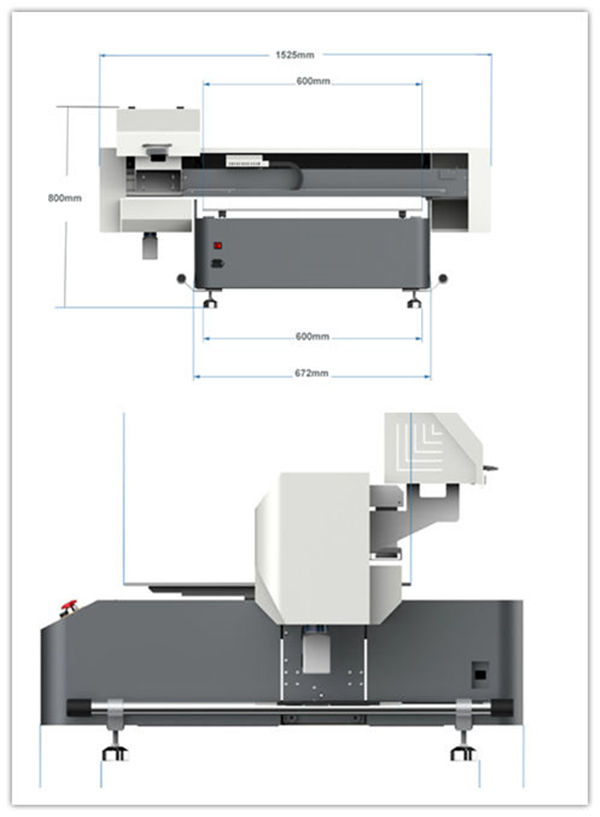

Machine Dimension113* 162 *80cm
PackingWooden Case
Case Size120*175*120CM
Package:UV4060pro Printer*1set ,Water cooling system*1set,SAi PhotoPrint DX software*1pcs, Inner six angle wrench*1set, Small screwdriver*2pcs, Ink absorption mat*1, USB Memory*1pcs ,USB cable*1pcs, Data cable*2pcs,Power wire*2pcs,Syringes*6pcs, Damper*6pcs, User manual*1pcs, Wiper*1pcs, Mainboard fuse*2pcs, Replace screws and nuts,Cleaner*1pcs
