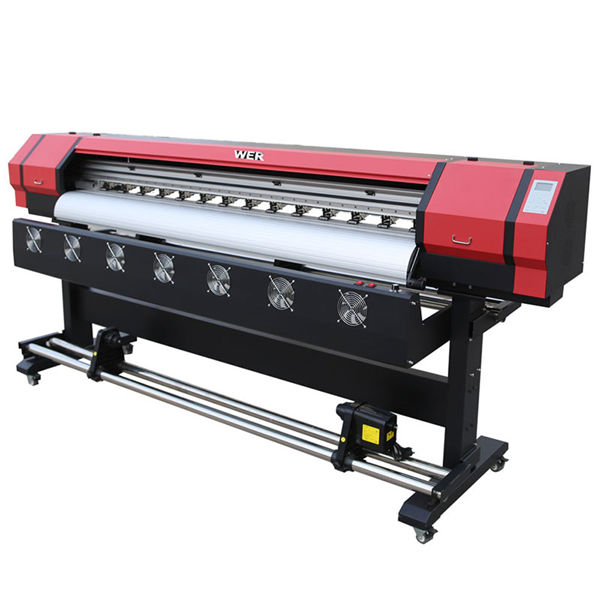

eco solvent dx5 ud-181lc inkjet printer

eco solvent dx5 ud-181lc inkjet printer


Type:Inkjet Printer
Automatic Grade:Semi-Automatic
Dimensions(L*W*H):L3,080 x W990 x H1,260

PrintheadEpson DX5
Number of printhead1 Head
Maximum print width1,800mm
Print Speed (m2/h)Print modeStandard output(m2/h)
720 dpi360 dpiRD 2PASS30
360 dpi1080 dpiD 3PASS20
720 dpi720 dpiS 4PASS15
1080 dpiQ 6PASS10
1440 dpiHQ 8PASS7
2160 dpiBL 12PASS5
InkType:Solvent Ink / ECO Solvent Ink
Color :4 Color (C,M,Y,K)
Capacity:1L per Main Tank of Each Color
Ink Supply SystemAuto Ink Supply System
Media WidthMaximum 1,880mm


Media TypeVinyl, Polyester ,Flex, Back-lit Film, PS Board, KT Board, PVC Board, etc.
Auto Media Feeding SystemEquipped (Max. Media Weight 25kg)
Auto Cleaning SystemAnti-clogged Flash Function & Capping System
Pre-heating & Drying SystemEquipped
Print InterfaceUSB 2.0
Printhead Height2 to 10 mm from Media
RIP SoftwareUltraprint, Maintop, Photoprint, Wasatch, Ergosoft, etc
Input PowerAC 220V,50Hz/60Hz
Machine Dimension / N.WL3,080 x W990 x H1,260mm / 204KG
Package Dimension / G.WL3,140 x W1,050 x H685mm / 381KG

The Speed data varies in different computer. Inkjet printer prints with fine ink dots, so the printing colors may be different along with the chnage of printheads. When printing with serveal printers at the same time, a difference in printing colors may exists due to a difference exist in every single printer.
